Cobot Palletising System

The Olympus UR Palletising System offers the smallest footprint cell whilst enabling the robot to safely palletise at its maximum cycles per minute.



Pallet configuration made easy with graphical drag and drop software

The Olympus UR20 Palletiser offers a maximum payload of up to 23kg, and up to 200kg of product per minute.
Pallet configuration is performed via the easy-to-use PC application to ensure your palletising system remains in production whilst configuring new pallets.
Drag-and-drop your cases on the pallet and let the software do the rest.
Every layer can be configured differently.
Offline configurator automatically chooses an optimal pick/drop routine with a refined optimisation algorithm.
No robot programming necessary: the Olympus Palletising URCap creates the robot program automatically from the configuration file.
Change products in seconds: the completed pallet configurations are stored on the robot, changing product is a simple as selecting a different file.
Download Brochure

Cobot Palletising System

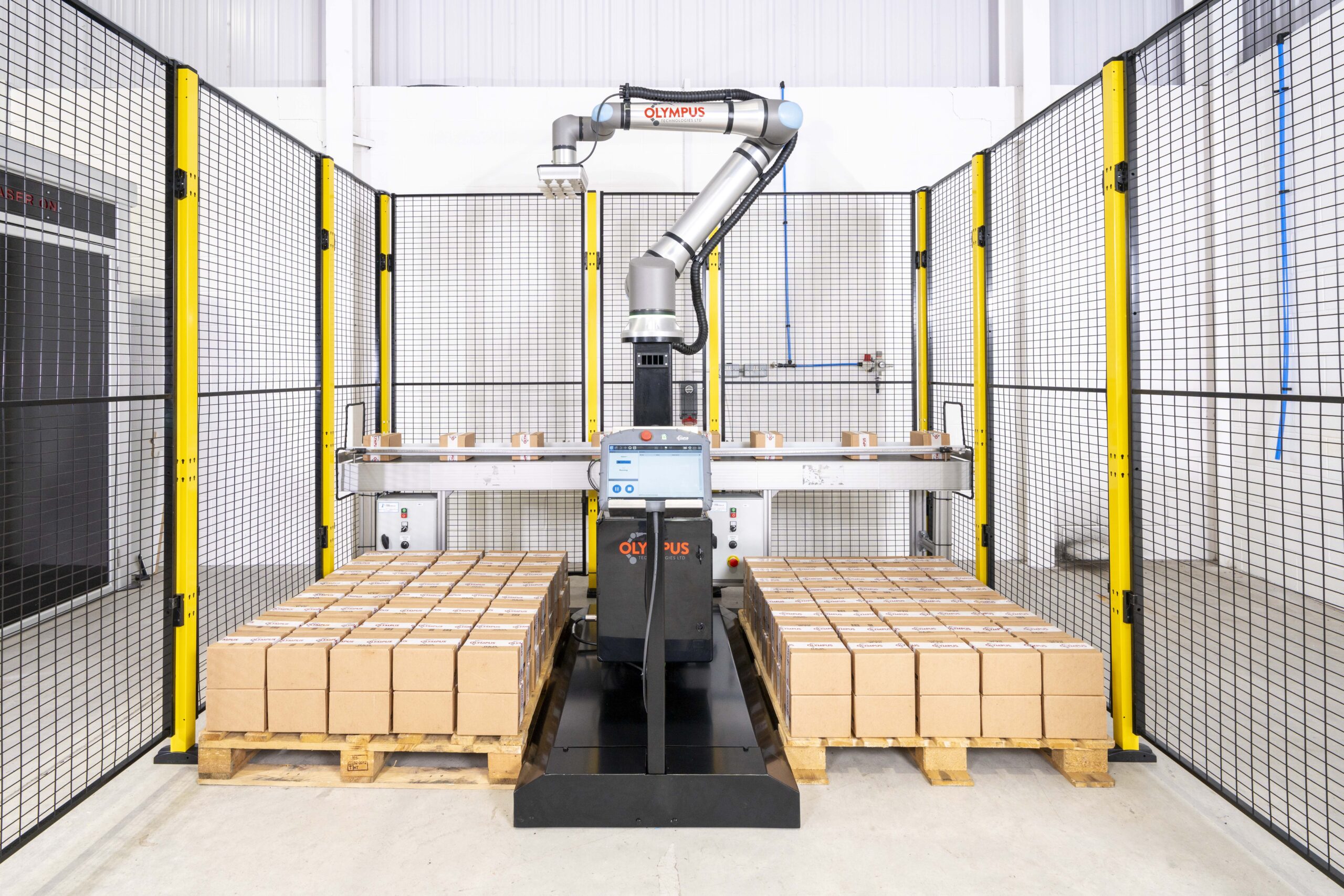

The twin or single station cell offers a range of benefits:

No robot programming required
All pallet configuration work is performed offline via drag and drop software on a laptop, then uploaded to the robot for production. This avoids any production downtime when preparing new products to be run on the line.

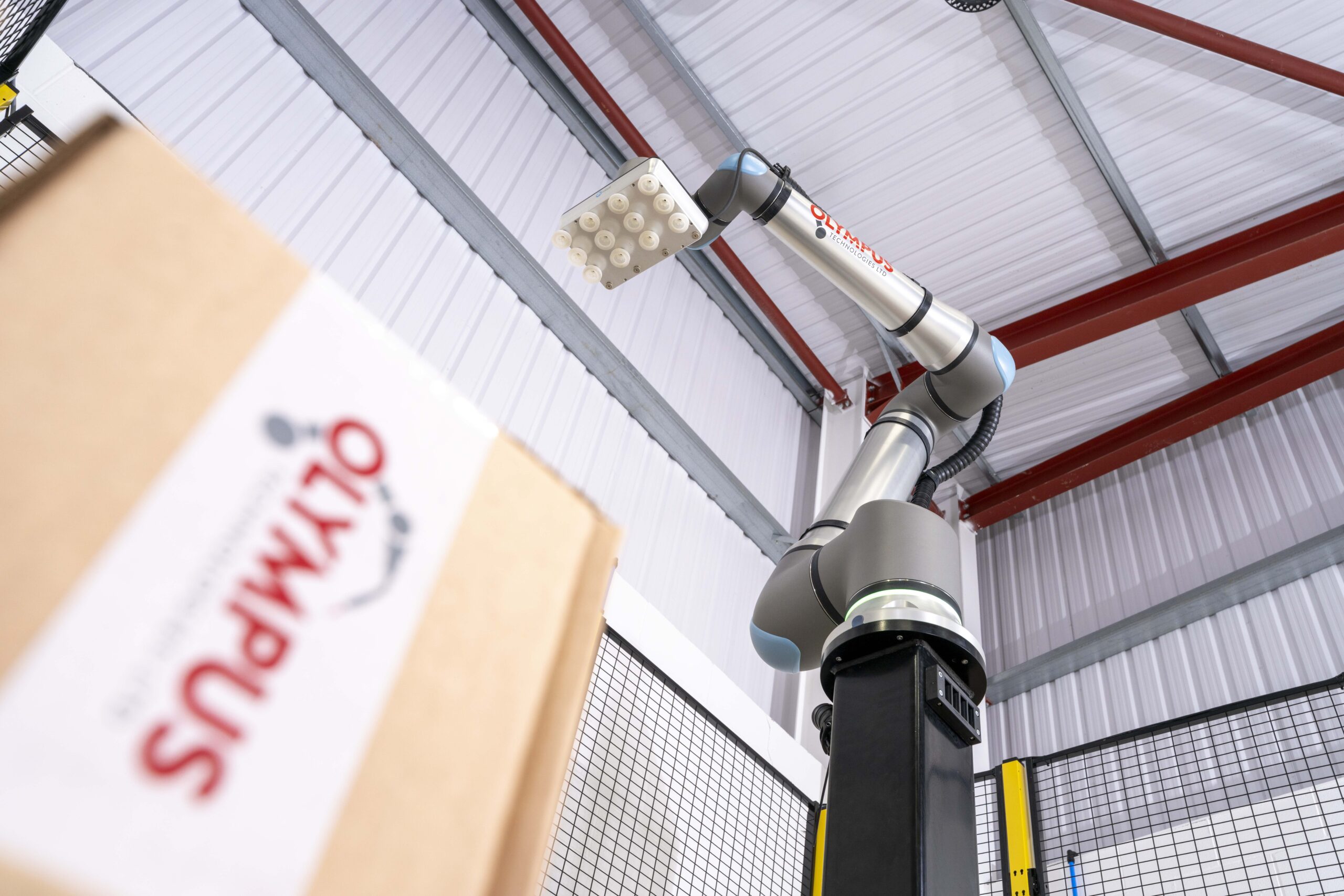

Bespoke gripper
Designed to pick as many of your product variants as practically possible.

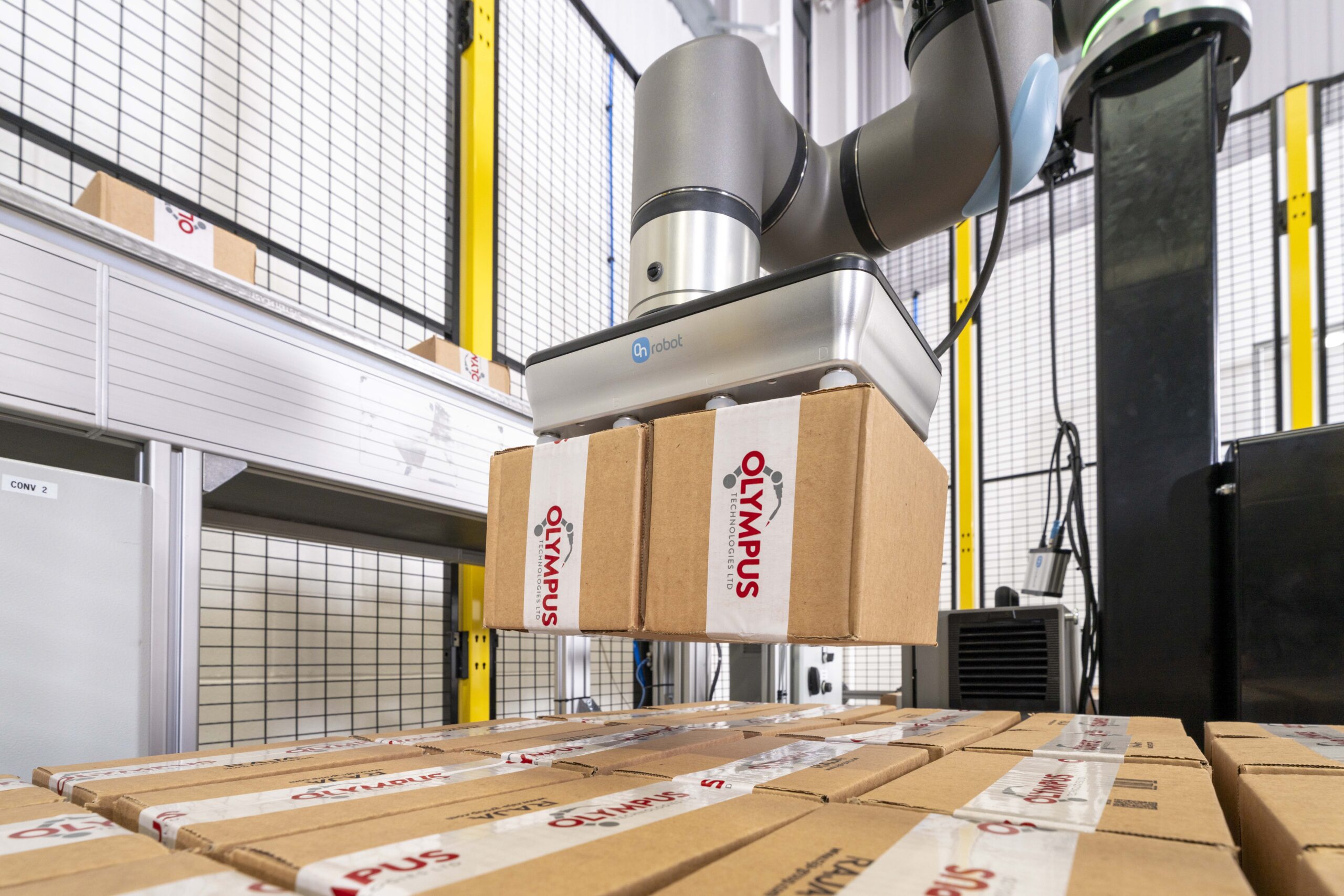

Picks single and multiple cases
The software determines how many cases to pick together in order to optimise cycle times. Cases picked together can be placed down separately.
Configuration
Every layer of the pallet can be configured differently.
De-palletises
The Olympus Palletiser de-palletises as well as palletises.
Payload Limits
The Olympus UR20 palletiser offers payloads of up to 23kg and can palletise up to 200kg of product per minute.
Fully UKCA marked
We take responsibility for all aspects of safety.
Interlayers / slip sheets
Interlayers / slip sheets can be added to the solution.

Full Support by Olympus in the UK

We have customers all over the UK and Ireland, and we are more than happy to visit customers’ sites to support you adding new product variants, training new staff, or diagnosing programming faults.

The Olympus team supports all our solutions from our base in West Yorkshire.
With a team of 15 engineers and technicians, someone is always available to help you over the phone, and by only using high quality equipment and components, 95% of our support is provided this way.
